Wenyao Small Mini Coffee Bean Color Sorter Machine

Apply to sorting: Often used to sorting coffee beans, seeds, grains and other materials。 Advantage: Moderate output, small footprint, convenient transportation, highcost performance, easy operation

Model

6-SXM-32

Color

White

Output(T/H)

0.2-0.5

Sorting Material

Rice,Coffee Bean,Seed,Sesame

Type

Chute

Channel/Chute/Width

32 Channel

About this iteam

Output:0.3-0.9(T/H) Sorting Accuracy:99.99% Rejection Rate:≥12：1 Weight:280(KG) Power:0.75(KW) Air Pressure:0.6-0.8(Mpa) Air Consumption:200-600(L/min)

Categorie:

Rice color sorter

Grain color sorter

Seed color sorter

Coffee bean color sorter

E-mail:

wycolorsorter@163.com

Send Inquiry

hiddenValue

Introduction
Parameters
Sorting Material
Working principle

Advantage:

1. Moderate output. The output of the small color sorter is not very large, about 1 ton per hour (such as rice), just in line with the processing capacity of most small processing plants and coffee shops

2. Small footprint. Generally speaking, small processing plants have relatively small workshops due to low processing output. Large color sorters occupy a large area and are not suitable for small workshops. The small color sorter is small in size and easy to move.

3. Convenient transportation. Different from large color sorters, small color sorters are easy to carry, light and convenient, and easier to clean after use, meeting the needs of many manufacturers.

4. The sorting quality is good. The small color sorter adopts modern CCD technology and computer-aided control technology. Through the analysis of the optical properties of the product, the good and the bad can be quickly distinguished to achieve the best effect of the product.

5. High work efficiency. Different from manual sorting, the productivity of machine sorting exceeds hundreds of manual sorting workers, which can greatly speed up production progress, improve enterprise production capacity, reduce labor intensity, and improve the production environment.

6. Cost savings. The small color sorter has a long service life, can be used repeatedly, replaces labor, reduces labor costs, and reduces enterprise production costs.

7. Easy to operate. The small color sorter adopts computer intelligent control, one-time operation, control system, parameter writing touch screen, etc. are relatively advanced, and the operation is also very simple. Ordinary workers can be proficient after short-term training.
Keywords:
- mini color sorter
- samll color sorter
- coffee bean color sorter

Parameters:

model	Output(T/H)	Sorting Accuracy(%)	Rejection Rate	Weight/(Kg)	Whole Power (KW)	Dimensions (LxWxH)mm	Air Pressure (Mpa)	Air Consumption (L/min)	Voltage
6-SXM-32	0.2-0.5	≥99.99	≥30:1	180	0.5	5009001520	0.6-0.8	100-300	220V/50Hz
6-SXM-64	0.3-0.7	≥99.99	≥30:1	280	0.75	78015271543	0.6-0.8	200-600	220V/50Hz
6-SXM-128	1-6	≥99.99	≥30:1	450	1.1	125015351832	0.6-0.8	600-1200	220V/50Hz
6-SXM-192	2-9	≥99.99	≥30:1	600	1.6	162015351832	0.6-0.8	800-1800	220V/50Hz
6-SXM-256	2.6-12	≥99.99	≥30:1	750	2.3	185515401852	0.6-0.8	1000-2400	220V/50Hz
6-SXM-320	3-15	≥99.99	≥30:1	900	2.9	224415401852	0.6-0.8	1300-2800	220V/50Hz
6-SXM-384	5-17	≥99.99	≥30:1	1100	3.1	259515401852	0.6-0.8	1500-3200	220V/50Hz
6-SXM-448	5-17	≥99.99	≥30:1	1350	3.9	290515401852	0.6-0.8	1800-3800	220V/50Hz
6-SXM-512	7-27	≥99.99	≥30:1	1500	5	302515401852	0.6-0.8	2000-4000	220V/50Hz
6-SXM-640	9-35	≥99.99	≥30:1	1800	6.5	375015401852	0.6-0.8	2600-5000	220V/50Hz
6-SXM-768	11-39	≥99.99	≥30:1	2100	7.0	443015401852	0.6-0.8	3000-6000	220V/50Hz

The above parameters take japonica rice (3%) as an example, and the specific indicators vary depending on the impurity content.

Examples of color sorting

Analyze every detail and select every raw material.

A number of patent technology innovation, high quality implementation, intelligent sorting industry new height!

Sorting Material:Coffee Bean,Rice,Sesame,Grain,Wheat,Corn......

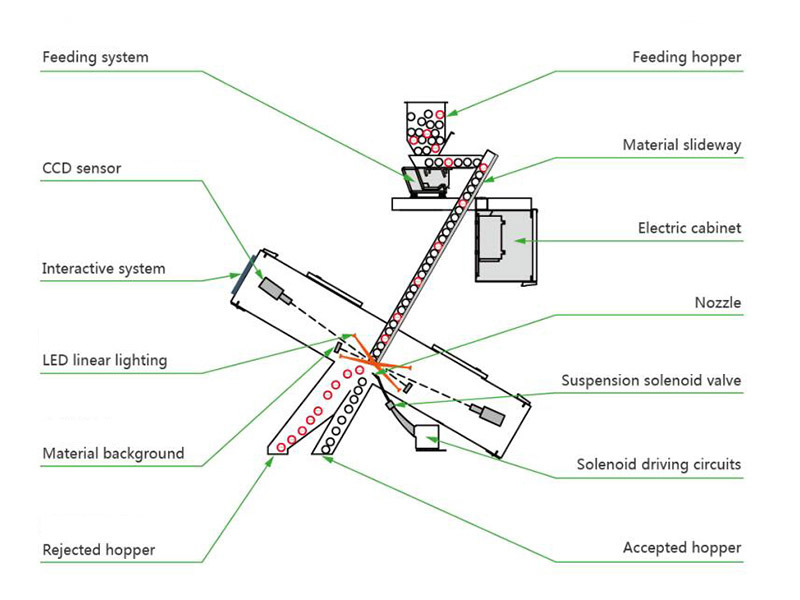

Working principle

Focus on the field of color sorting and lead the industry standards;

Create unlimited space, sorting to improve quality.
