Belt Type Color Sorter Machine For Dried Chillies Garlic Dehydrated Vegetables

Apply to sorting: plastic,wastemetal,ore,nut,dehydrated vegetables, frozen seafood Advantage: High color sorting accuracy, small damage, high output, small take-out ratio

Color

White

Output(T/H)

0.6-2.5

Sorting Material

Grain,Wheat,Corn,Seed,Peanut,Coffee Bean

Type

Chute

Channel/Chute/Width

128 Channel / 2 Chute

About this iteam

Sorting Accuracy:99.99% ，Rejection Rate:≥12：1, Weight:450KG, Power:1.1KW, Air Pressure:0.6-0.8(Mpa) Air Consumption：600-1200（L/Min)

Categorie:

Home

E-mail:

wycolorsorter@163.com

Send Inquiry

hiddenValue

Introduction
Parameters
Sorting Material

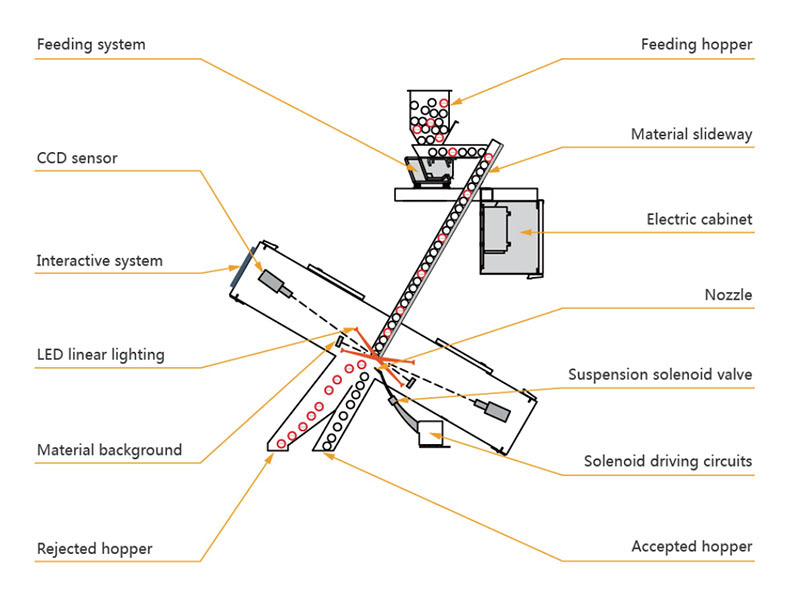

Working principle

1.The high-quality special industrial lens is designed and manufactured for dehydrated vegetable color sorting inspection. Its working parameters are customized according to the color sorting requirements of various raw materials, and the optical path design is optimized to ensure that each material can be accurately imaged on the image sensor

2.According to the spectral characteristics and identification characteristics of dehydrated vegetables, a special dehydrated vegetable detection algorithm with equal emphasis on sensitivity and robustness is designed from the spectral analysis to meet the detection of subtle color differences while improving its robustness to avoid material surface interference from other factor.

3.Wide light confocal system, Japanese Toshiba high-definition imaging, precise target, intelligent analysis and high-speed processing

4.Good at identifying and removing light colors, tiny spots, and slight color differences

5.Set color selection, shape selection and size function in one

Model	Output(Kg/h)	Sorting Accuracy(%)	Rejection Rate	Weight(Kg)	Whole Power( Kw)	Dimensions(L*W"H) mm	Air Pressure (Mpa)	Air Consumpion(L /min)	Voltage(V/Hz)
WYB1	400-1000	>=99.99	>=30;1	550	1.5	2450* 1010*1539	0.6-0.8	200-600	220V/50H/60HZ
WYB2	800-2000	>=9999	>=30:1	800	2.5	2455* * 1310*1540	0.6-0.8	600-1200	220V/50H/60HZ
WYB4	1600- 4000	>-99.99	>-30:1	1400	4.5	3173* 1914"1420	0.6-0.8	1000-2400	220V/50H/60HZ
